So, I bought an
Arctic Accelero Xtreme 7970 1 year ago, and finally decided to mount it on a 7970.
 |

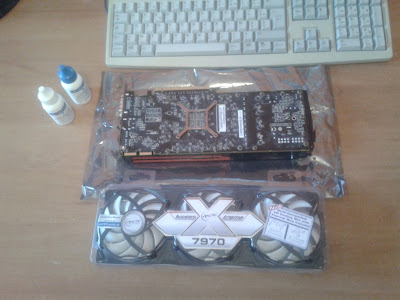

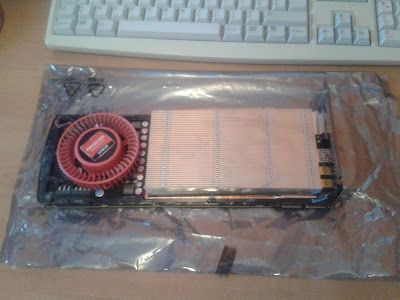

| The reference design 7970 and the Accelero |
|
 |
| Removed the top part |
 |
| Removed the heat sink block | | | | | | | | | |
|
|
|
 |
| Quickly removed thermal paste stuff |
 |
| A little bit cleaner |
 |
| Done cleaning the gpu chip |
 |

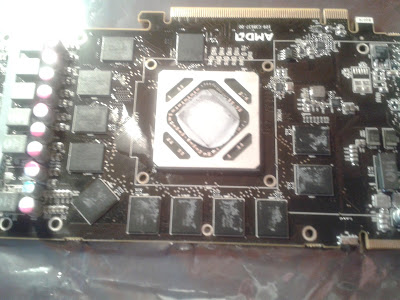

| Now that is clean, it's like a mirror |
 |
| Trying methods to hold everything in place... |
 |
| Screwed the mounting plate with the backplate |
 |
| Mixing the G1 thermal glue |
 |
| Applied thermal glue and put heat sinks on the components |
And now we wait at least 5 hours...
Put the mounting plate back on the Accelero
 |
| Assemble everything |
 |
| Done ! |
|
Let's see how it performs :
 |
| oclHashcat-lite |
 |

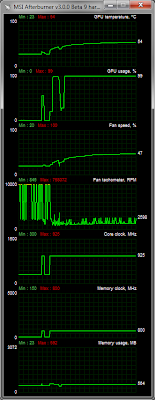

| MSI Afterburner |
Now the temperature stays under 60°C at full load (and under 50°c with the fans set to 100%)
It also appears that the rpm of the fans is wrongly reported/acquired.
It's
really quiet compared to the reference design.
The
installation guide used.
